Mold Components
Our automated production lines and cutting-edge precision （high-end） machines enable us to deliver mold components with high-precision and industry-leading speed, delivering as fast as 7 days.
Mold Components
Core
1. Material：S136
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
Core
Cavity
1. Material：S136
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
Cavity
Slider
1. Material：S136
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
Slider
Lift
1. Material：S136
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
Lift
Basic Machining Parameters
| Feature | Description |
|---|---|
| Maximum Part Size | 1000 x 650 x 750 mm |
| Standard Lead Time | 7 days |
| General Tolerance | ± 0.015mm (0.0005’) |
| Precision Tolerance | ± 0.005mm (0.0002’) |

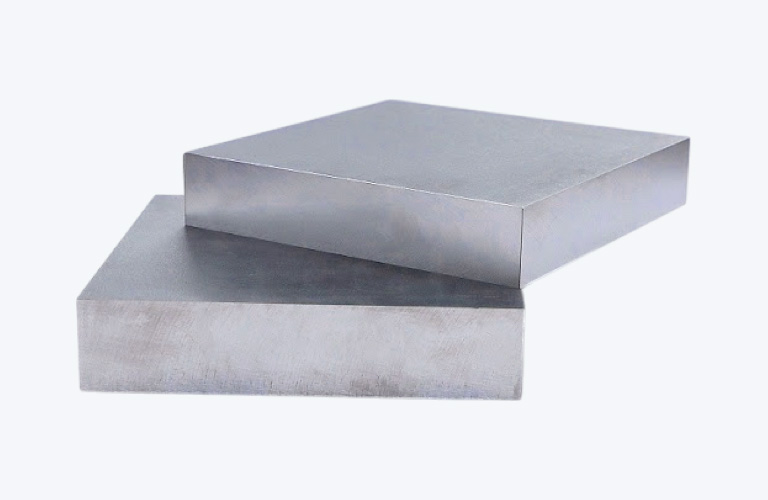

Tool Steel Used in Core & Cavity Production
- S50C
- S136
- S136H
- STAVAX
- 8407
- P20
- 718H
- 738H
- DC53
- NAK80
- 2510
- 1.2343
- 1.2343ESR
- 1.2344
- 1.2344ESR
- 2738HH
- M333
- M390
- CR12MOV
- COPPER
- YF2083HH
- YFP90R
