Services we can provide

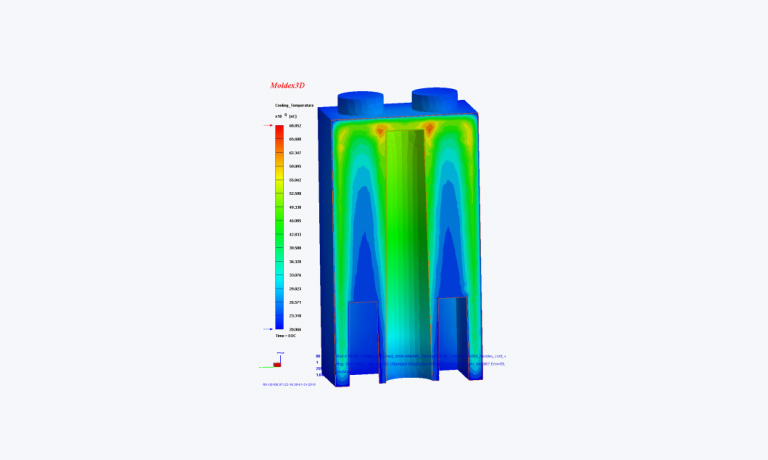

We provide one-stop processing and manufacturing services including mold design, DFM, MFA, mold manufacturing, proofing, and delivery.
Types of parts we can make
2k
1. Material：S136
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A

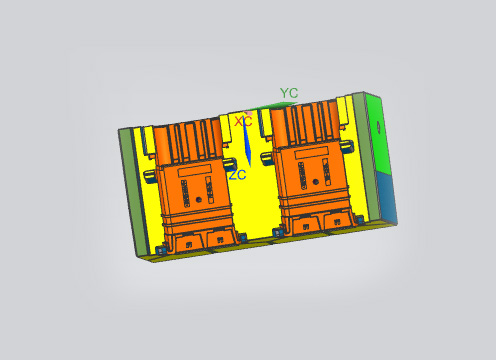

2k
Stack mold
1. Material：S136
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A

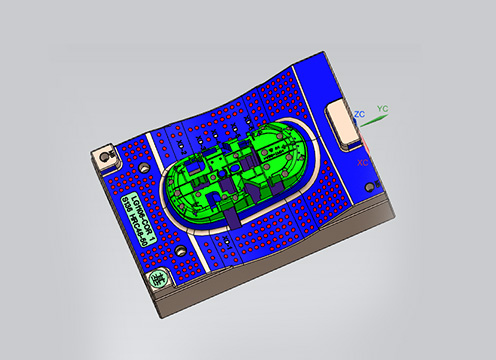

Stack mold

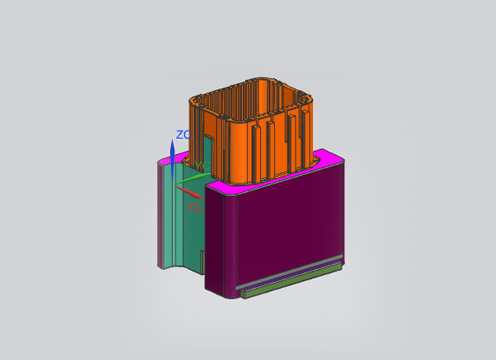

Insert molding
1. Material：S136
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
Insert molding

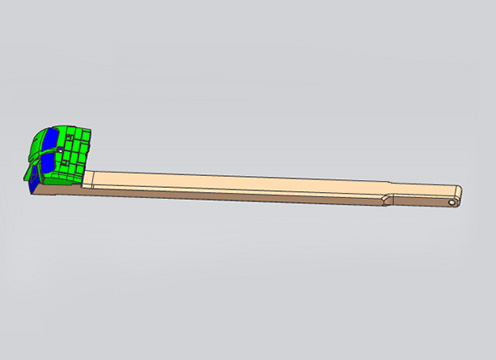

Lift
1. Material：S136
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
2. Tolerance：
• Insertion position (single-sided): -0.005~-0.01mm
• Mating surface: 0~+0.01mm
• Plastic part dimensions: ±0.02mm
3. Delivery Time：18 days
4. Post-processing：N/A
Lift

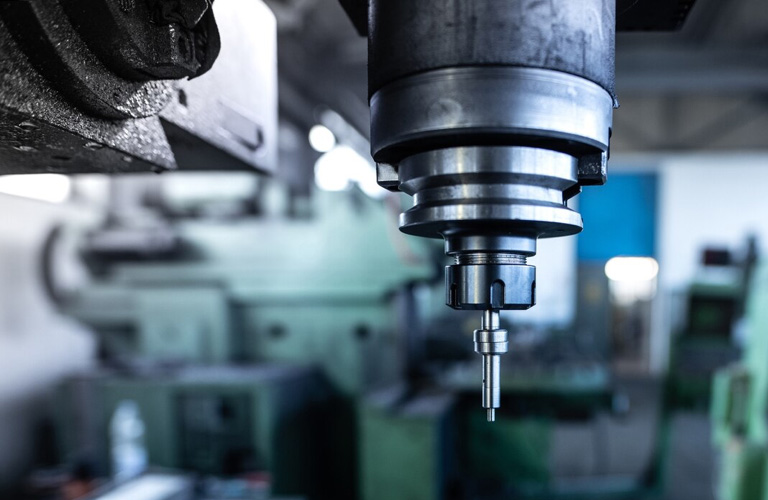

Basic Machining Parameters
| Feature | Description |
|---|---|
| Maximum Mold Size | 1000 x 650 x 750 mm |
| Standard Lead Time | 25 days |
| General Tolerance | ± 0.015mm (0.0005’) |
| Precision Tolerance | ± 0.005mm (0.0002’) |
Tool Steel Used in Core & Cavity Production
- S50C
- S136
- S136H
- STAVAX
- 8407
- P20
- 718H
- 738H
- DC53
- NAK80
- 2510
- 1.2343
- 1.2343ESR
- 1.2344
- 1.2344ESR
- 2738HH
- M333
- M390
- CR12MOV
- COPPER
- YF2083HH
- YFP90R
